SUP-MDP ultrasonic open channel flowmeter

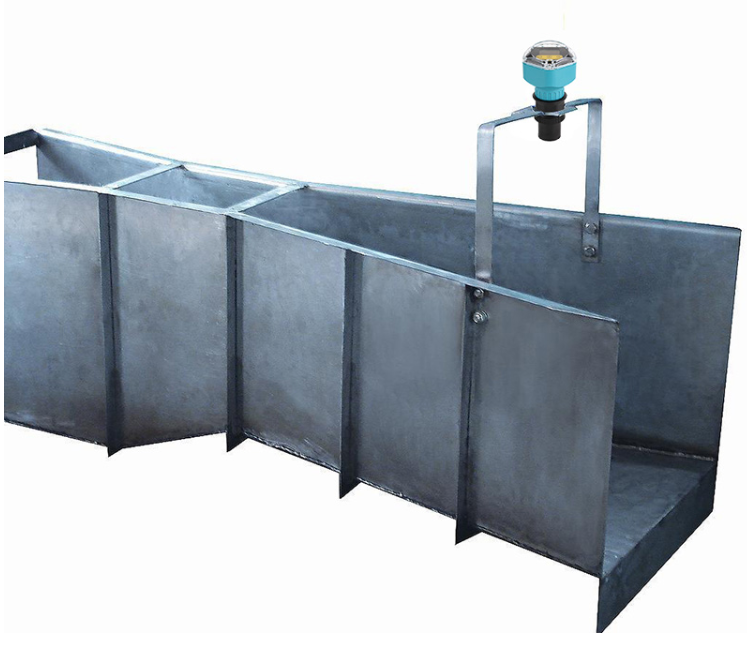

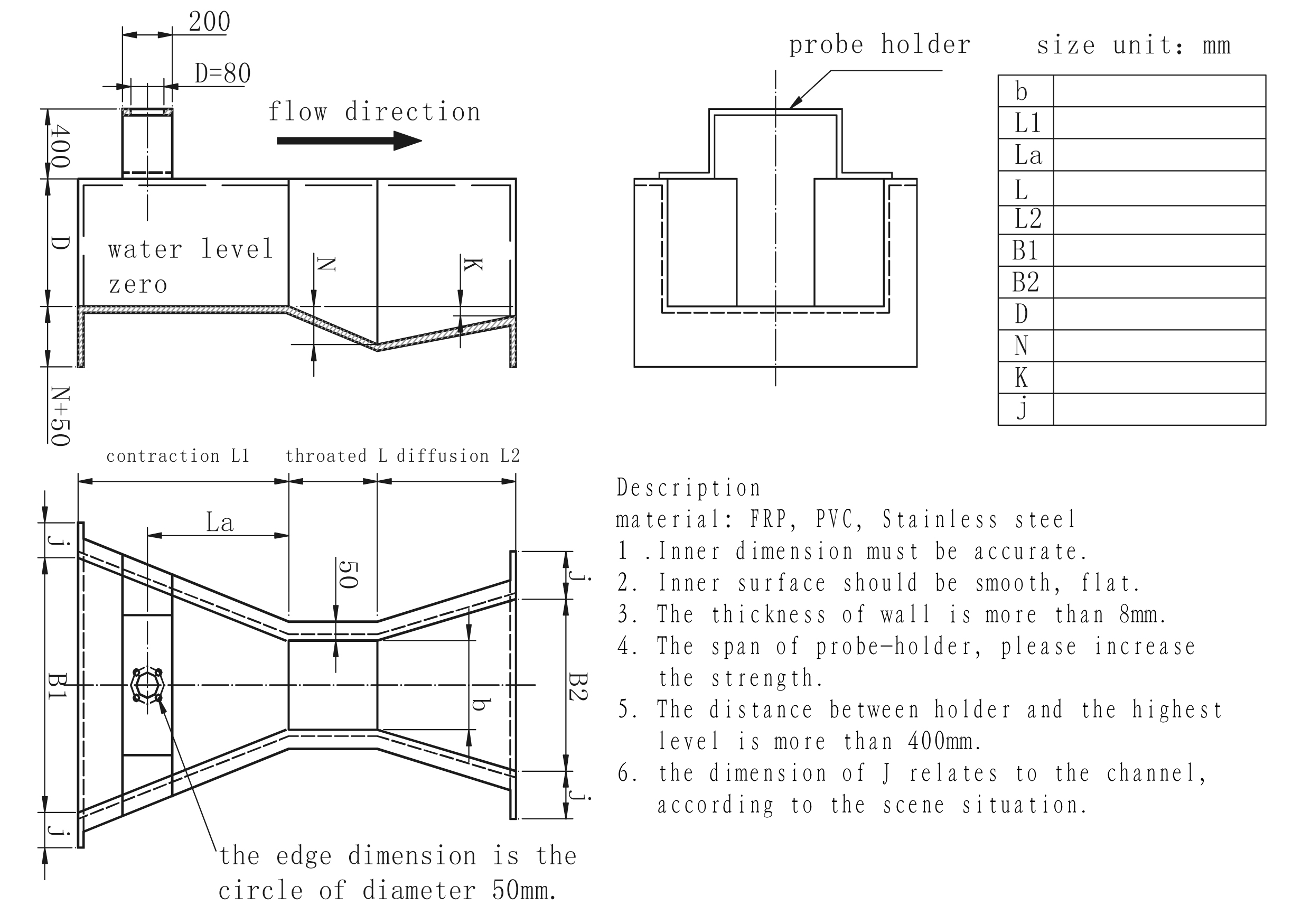

SUP-MDP ultrasonic open channel flow meter with weir and flume which used together for measured the flow in the open channels. Mainly application is the outfall of sewage plant and the sewage of enterprises, city sewer and irrigation channels.
The instrument produced by our company uses ultrasonic waves through the air, non-contact method to measure.
Compare with contact instrument, it has higher reliability and durability in the condition of sticky dirt, corrosive liquid.
- Description
SUP-MDP ultrasonic open channel flow meter with weir and flume which used together for measured the flow in the open channels. Mainly application is the outfall of sewage plant and the sewage of enterprises, city sewer and irrigation channels.
The instrument produced by our company uses ultrasonic waves through the air, non-contact method to measure. Compare with contact instrument, it has higher reliability and durability in the condition of sticky dirt, corrosive liquid.
Function
|
Integrated type
|
Split type
|
Range
|
0.1l/s～99999.99 m³/h
|
|
Cumulative Flow |
biggest：4290000000.00 m³ |
|
Max range for level
|
3m |
|
Accuracy for level
|
0.5% |
|
Resolution
|
3mm or 0.1%（bigger） |
|
Display |
Chinese LED |
|
Accuracy for Flow |
Standard weir:1～5%
(meet the requirements of national standard weir and channels)
Non-standard weir: 10～30%。 |
|
Analog output
|
(Four-wire system) 4～20mA/750Ωload |
|
Delay output
|
(optional)two groups :AC 220V/ 8A or DC 24V/ 5A， |
|
Power supply
|
Standard:24VDC 100mA；optional: 220V AC+15% 50Hz。 |
|
Power supply
|
(optional)12VDC、battery、solar |
|
Environment
Temperature |
LED:-20～+60℃，Probe: -20～+80℃ |
|
Environmental
pressures |
Standard atmospheric pressure |
|
Environment humidity |
≤90%RH， Non-condensing |
|
Process temperature |
-20～80℃； |
|
Process pressures |
Standard atmospheric pressure |
|
Communication |
Optional:485，232，MODBUS protocol
|
|
Protection Grade |
LED:IP67 Probe: IP68
|
LED:IP65，probe:IP68
|
Cable Probe |
No |
Standard:10m，
The longest:100m |

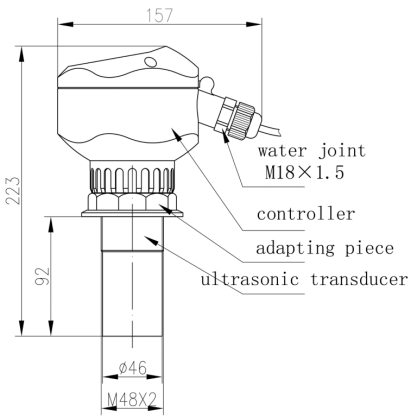

Probe installation
dimension |
M48x2mm thread + matching nuts |
|
Probe
Material
|
Standard: ABS Teflon material in corrosive environment |
|
Power Consumption |
Split type: Power supply:24V, No relay: 100mA Channel 1 of Relay: 120mA； Channel 2 of Relay: 145mA； Channel 3 of Relay: 170mA； Channel 4 of Relay: 190mA； The specific power is as follows: No relay: 24×100mA=2.4W； Channel 1 of Relay: 24×120mA=2.9W； Channel 2 of Relay: 24×145mA=3.5W； Channel 3 of Relay: 24×170mA=4.1W； Channel 4 of Relay: 24×190mA=4.6W； Channel 3 of Relay: 24×170mA=4.1W； Channel 4 of Relay: 24×190mA=4.6W； Integrated type (Four-wire system) Power supply:24V, No relay: 80mA Channel 1 of Relay: 105mA； Channel 2 of Relay: 130mA； The specific power is as follows: No relay: 24×80mA=1.9W； Channel 1 of Relay: 24×105mA=2.5W； Channel 2 of Relay: 24×130mA=3.1W； |
